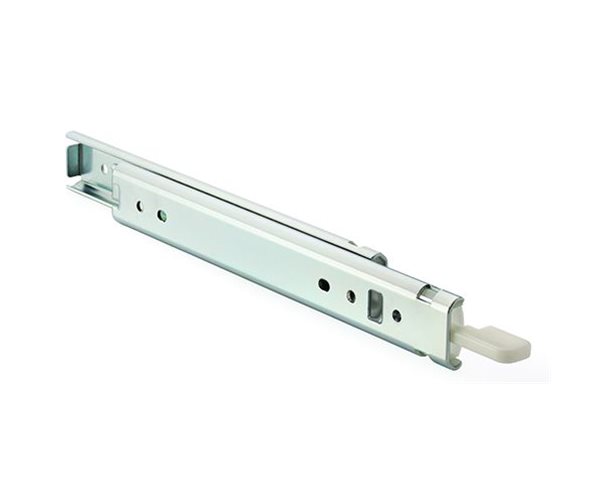

The Accuride 2731-CL Drawer Runner, also known as Drawer Slide is a light-duty runner designed for exceptional performance and reliability. Featuring a lock-in mechanism, this slide ensures secure closure, making it ideal for various retail environments. With a load rating of up to 30kg and 100% extension, it offers full access to drawer contents.
- Load rating up to 30kg (80,000 cycles) per pair
- 100% extension
- 19.1mm slide thickness
- Low profile only 27mm high
- Lock-in
- Front lever lock release
- Not suitable for flat mounting
- Temperature -20°C to +70°C
- DZ - 12 hours salt spray test
- Sold in pairs
Notes:
- M4 or M3 screw fixing recommendation
- Max head height 2.5mm/Ø8.3mm
- Slide is unhanded
- Load ratings quoted are the maximum for a pair of side mounted slides installed 450mm apart, unless otherwise stated

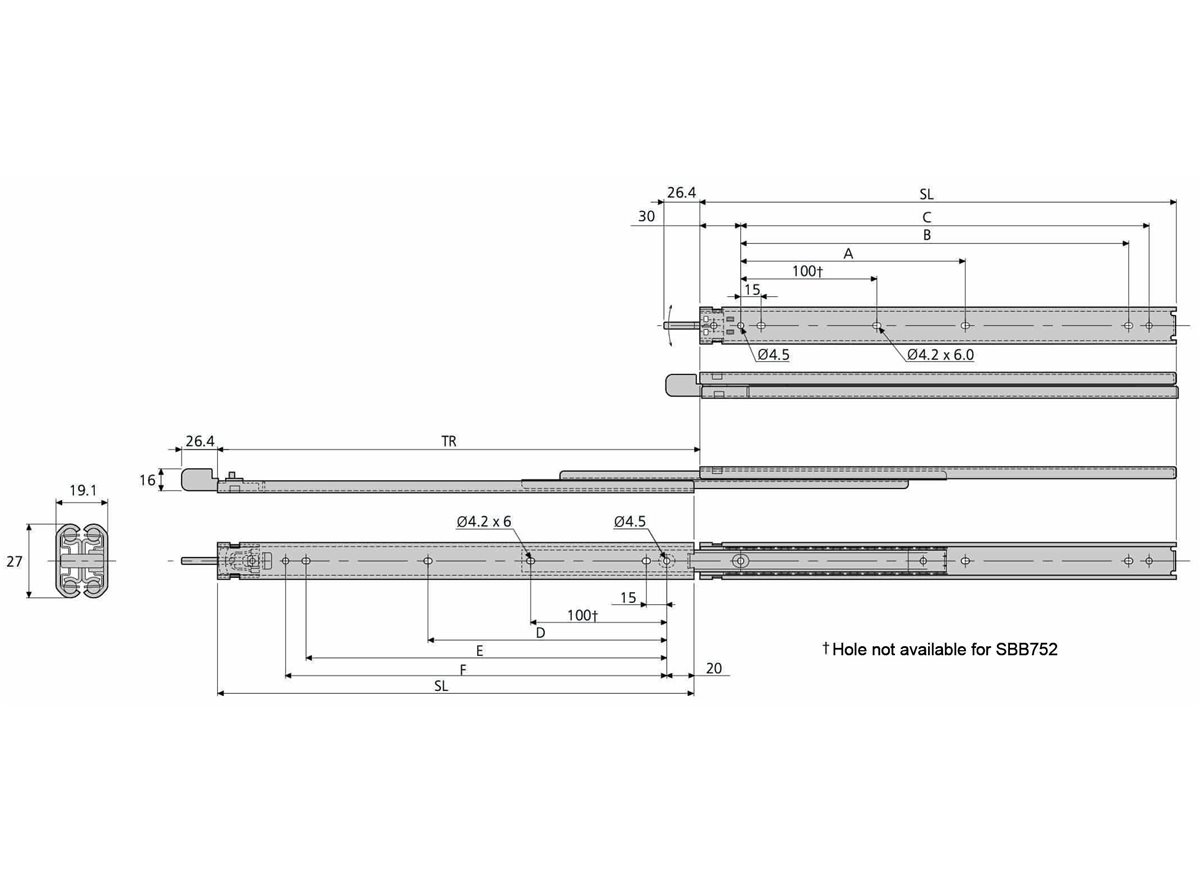

Please see technical drawing for hole exceptions for SBB752
Material - Mild Steel
Finish - Zinc Plate & Passivate
SL = Slide Length
TR = Travel + or - 3
W = Weight of slide (kg) - per pair
L = Load capacity of slide (kg) - per pair
