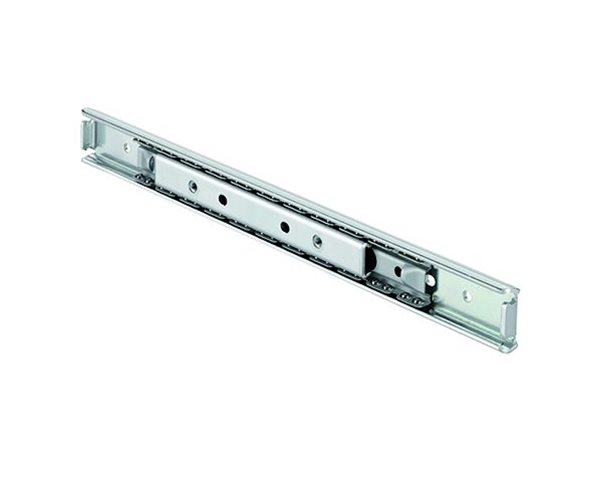

The Accuride 2415 linear motion ball bearing drawer runner, also known as a drawer slide is a light-duty solution designed for smooth and reliable performance. With a load rating of up to 18.5kg, these slides are ideal for various applications in printers, computing and IT equipment.
- Load rating up to 18.5kg (80,000 cycles) per pair
- 8mm slide thickness
- Vertical or horizontal mounting
- Suitable for flat mounting
- Temperature -20°C to +110°C
- DZ - 12 hours salt spray test
- Sold in pairs
Notes:
- M3 screws fixing recommendation
- Sold in pairs
Material - Mild Steel
Finish - Zinc Plate & Passivate

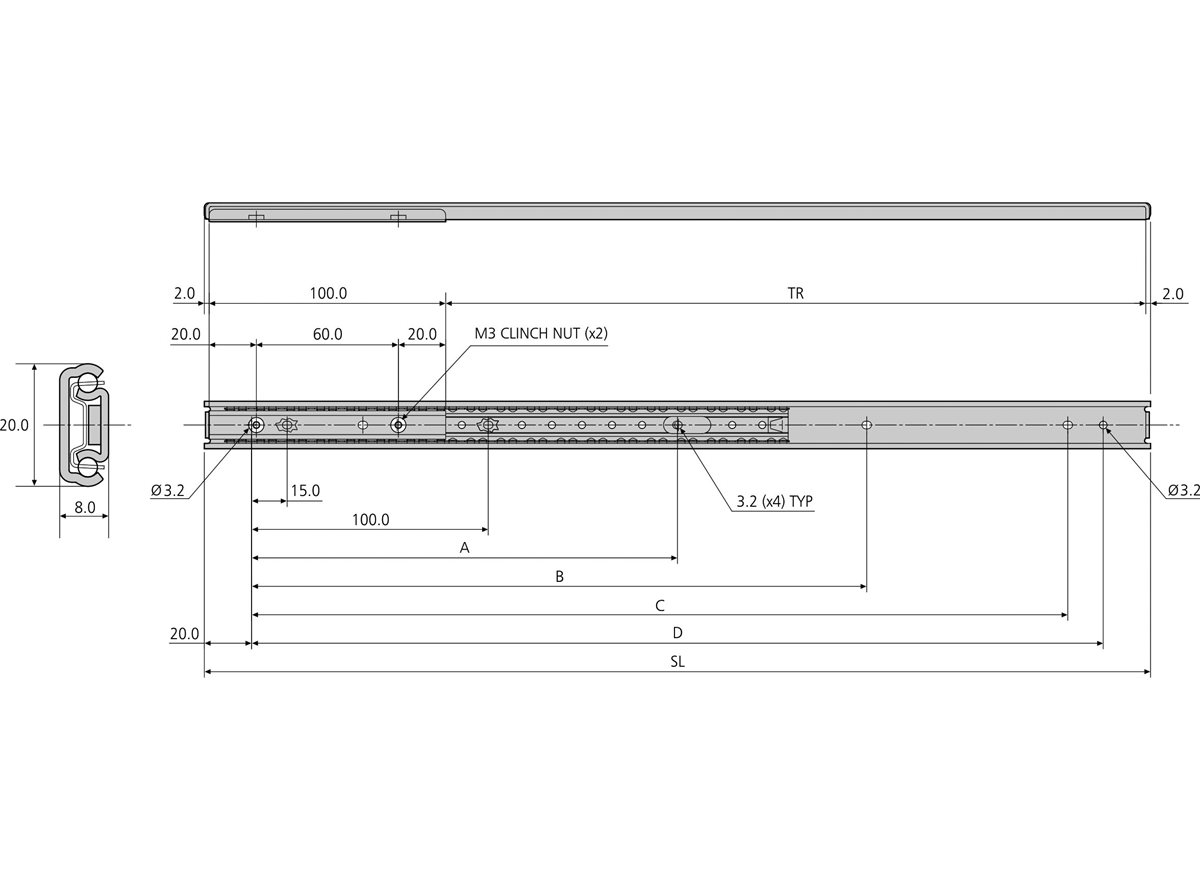

SL = Slide Length
TR = Travel + or -3
W = Weight of slide (kg) - per pair
L = Load capacity of slide (kg) - per pair
