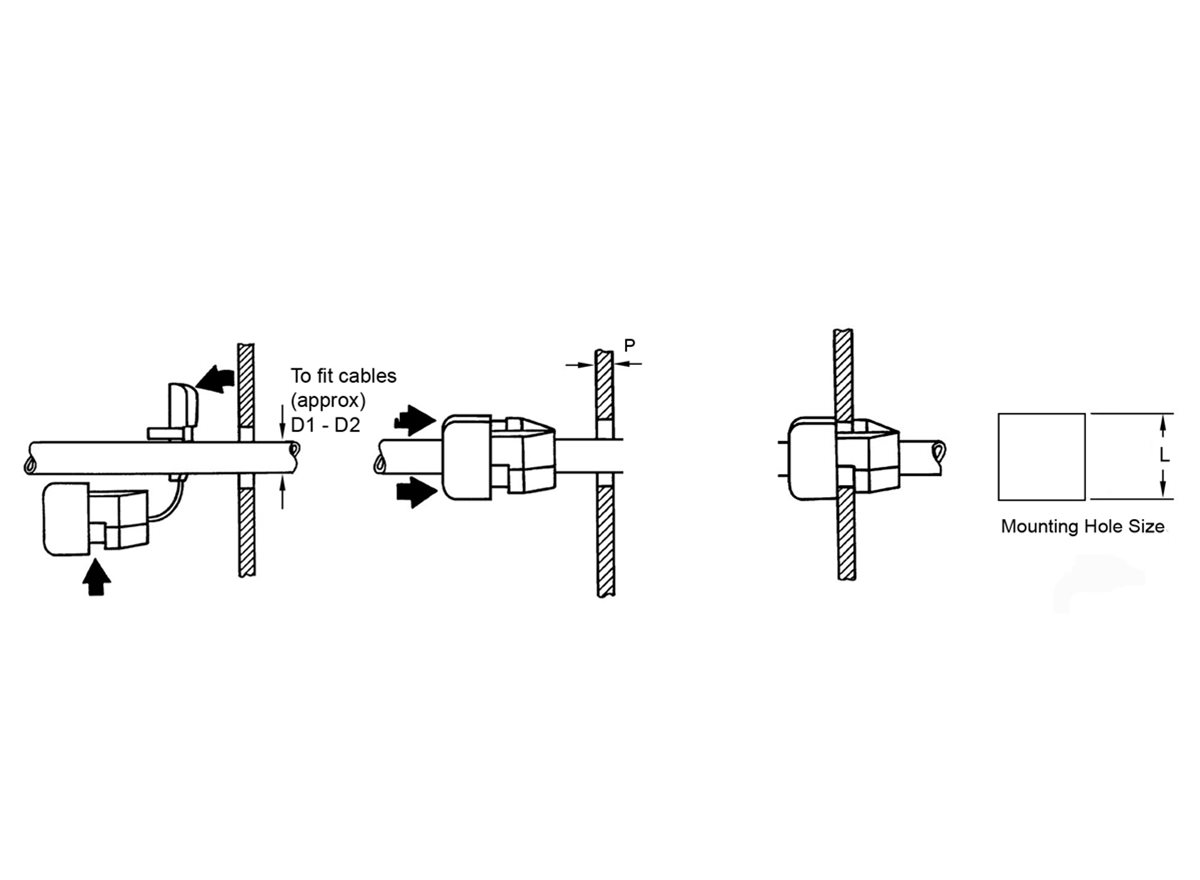

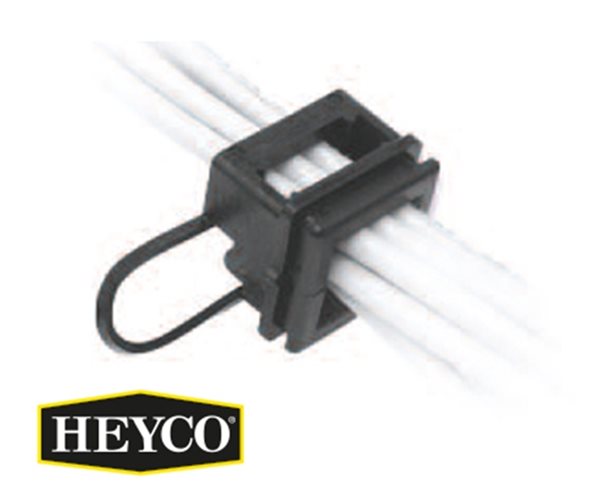

Heyco® Hinged Edge Strain Relief Bushings are designed for rectangular edge slot or split panel mounting and suitable for retrofit applications. This Hinged Edge Strain Relief Bushing is used for round, flat or multiple cables.
• Independent of final mounting, Hinged Edge Strain Reliefs self-lock onto the cable and may be preassembled “off line” for final assembly at a later time or remote location
• Rectangular design eliminates the possibility of part rotation under forces of twist
• SRB076 has a unique wire locking ratchet allowing for a generous wire range of 6.4mm to 15.2mm
• For round, flat or multiple cables
Material - Nylon 6/6
Flammability Rating 94V-2
Temperature Range: 0°C to 105°C
Certifications:
• Recognised under the Component Program of Underwriters’ Laboratories File E15331
• Certified by the Canadian Standards Association File 8919
