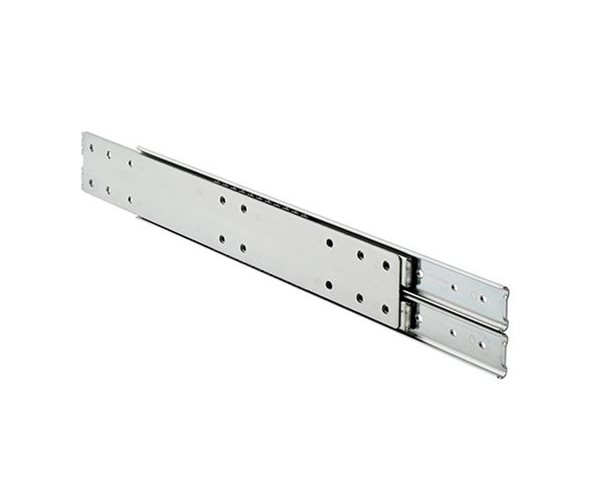

Accuride 6026 Two-Way Travel Drawer Runners, also known as Drawer Slides are designed with two-way travel for access to both sides of an application. These slides are ideal for when two operators are working in tandem.
- Load rating up to 100kg (80,000 cycles) per pair
- 75% extension
- 12.5mm slide thickness
- Two-way travel
- Suitable for horizontal (flat) mounting
- Flat mounting reduces load rating by 75%
- Temperature -20°C to +110°C
- DZ - 12 hours salt spray test
- Sold in pairs
Notes:
- M4 screw/4mm wood screw fixing recommendation
- Max. head ht. 2.5mm/Ø9.6mm
- Horizontally (flat) mounting slides reduces the load capacity to at least 25% of the vertical (side) mount capacity
- Load ratings are the maximum for a pair of side mounted slides installed 450mm apart, unless otherwise stated
Material - Mild Steel
Finish - Zinc Plate & Passivate

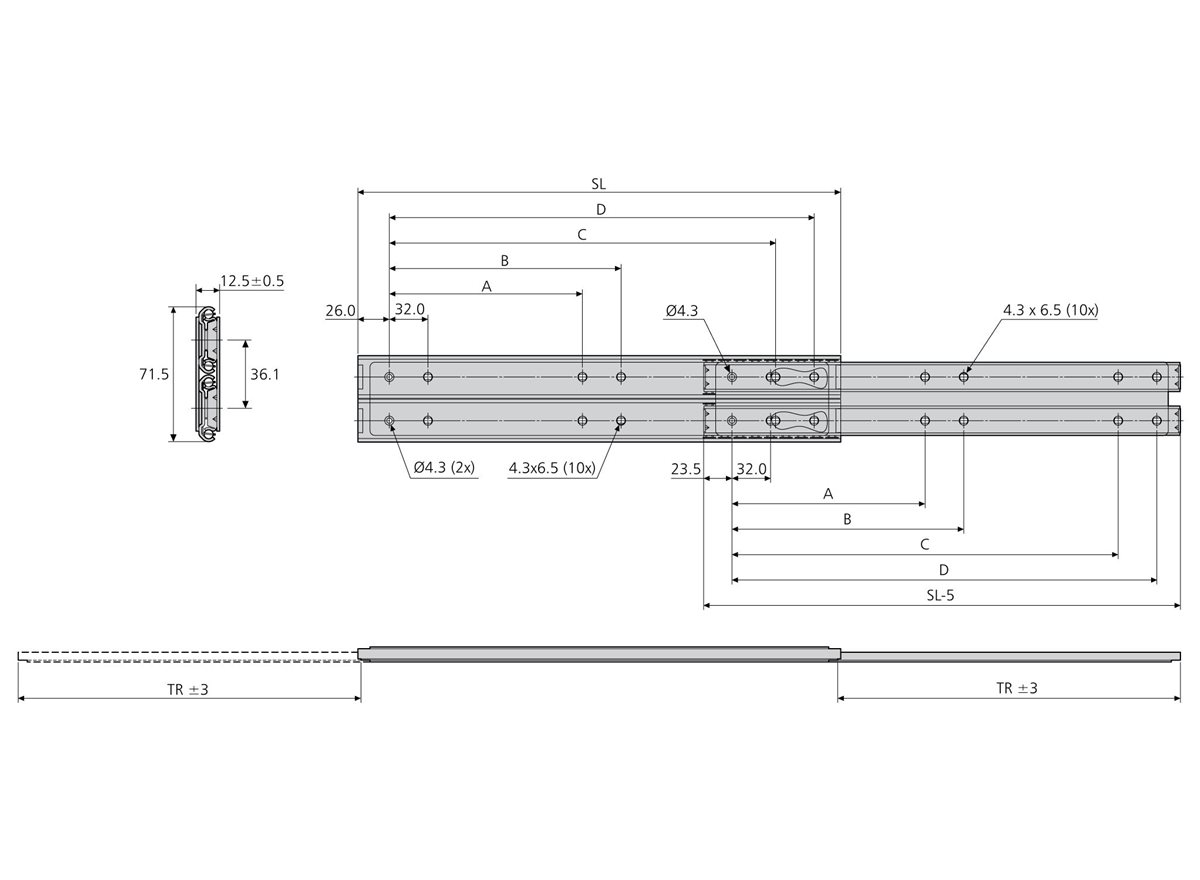

SL = Slide length
TR = Travel (+or-3)
W = Weight of slide (kg) - per pair
L = Load capacity of slide (kg) - per pair
