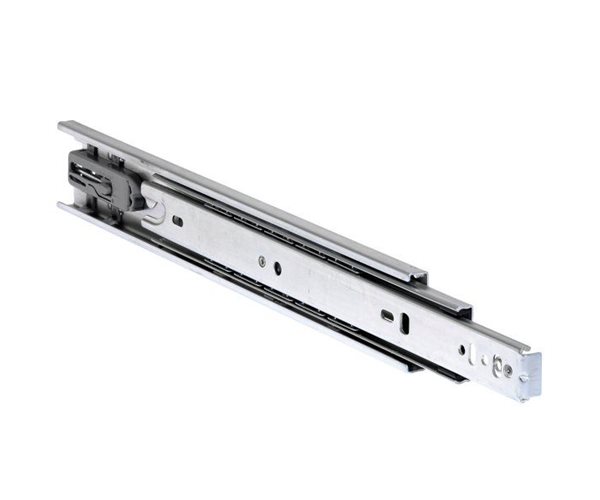

Accuride 3832 HDSC Self-Close Drawer Slides

Accuride 3832 HDSC Self-Close Drawer Runners, also known as Drawer Slides are designed with front disconnect, allowing a lever or push latch to be positioned near the front of the slides for easy operation of the disconnect function. These slides also have a hold-in feature to keep slides closed until extra force is applied.

• Closing/opening force:-
  HDSC: 2.7 - 4.1kg per slide (SC Version: 1.4 - 2.7kg per slide)
• Load rating up to 45kg (80,000 cycles), or 50kg (10,000 cycles) per pair
• 100% extension slide
• 12.7mm slide thickness (14mm with mounting bracket)

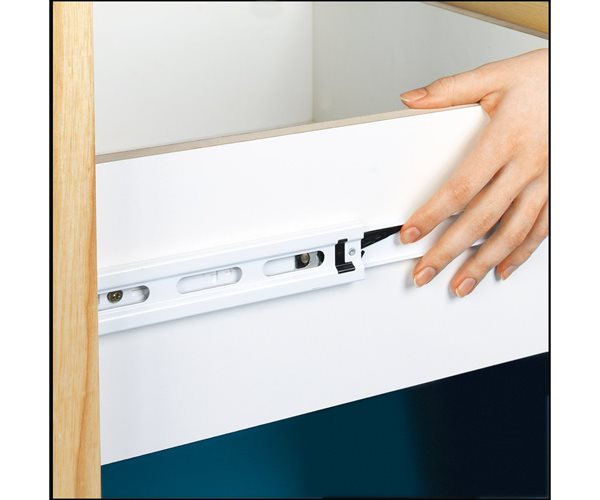

• Front disconnect
• Hold-in

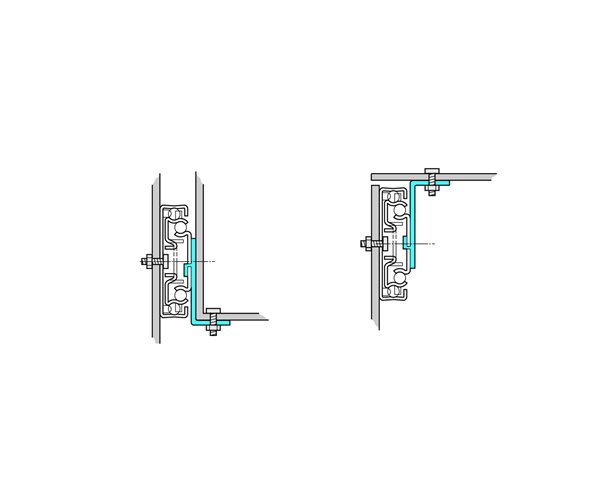

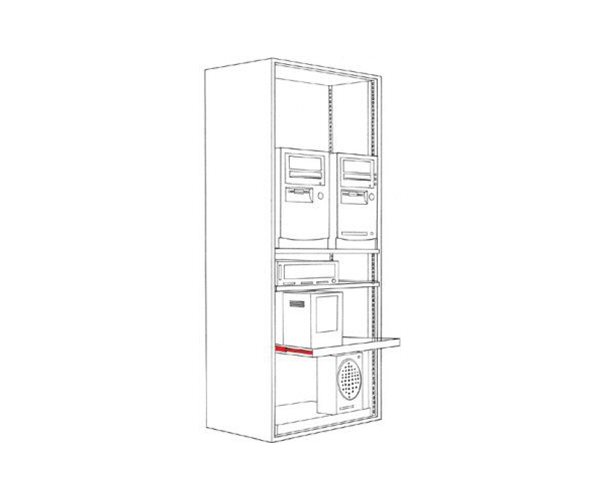

• Optional clip-on bracket for bottom and platform mounting
• Cam drawer adjust (3.2mm)
• Not suitable for flat mounting
• Temperature -20°C to +70°C
• 12 hours salt spray test
• Sold in pairs

Notes:

• Fixing recommendation is M4 screw/4mm wood screw/6mm Euro screw
• Maximum head height 2.5mm/9.6mm diameter
• Horizontal mounting not recommended
• Drawer width should not exceed slide length
• Load ratings quoted are the maximum for a pair of side mounted slides installed 450mm apart, unless otherwise stated

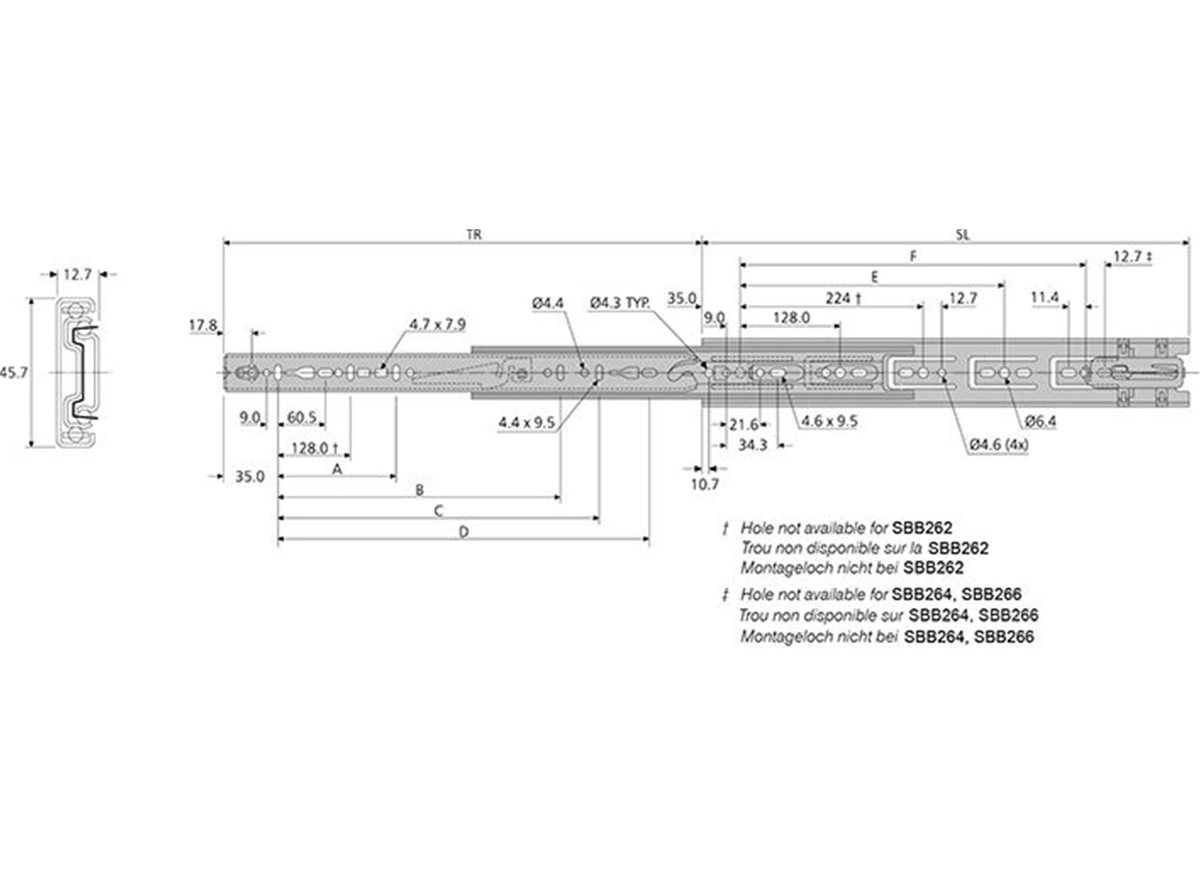

• Please see technical drawing for hole exceptions
• View Optional clip-on bracket for bottom and platform mounting

Material - Mild Steel
Finish - Zinc Plate & Passivate

SL = Slide Length
TR = Travel
W = Weight of slide (kg) - per pair
L1 = Load rating of slides (kg) at 10,000 cycles
L2 = Load rating of slides (kg) at 80,000 cycles
