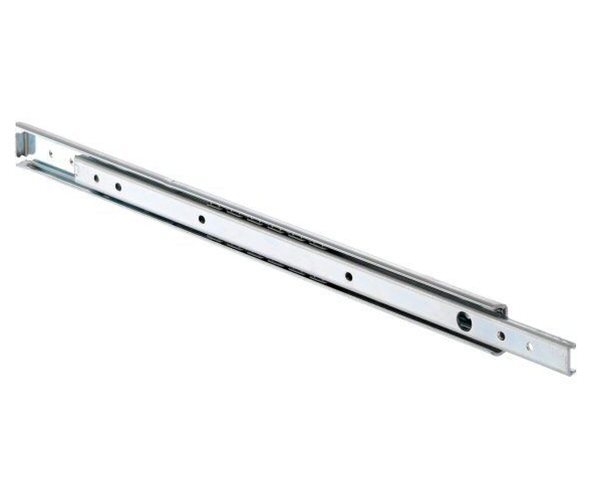

These Accuride 2421 Low Profile Drawer Runners, also known as Drawer Slides are designed with a low profile height for applications that have shallow drawers.
- Load rating up to 16kg (80,000 cycles) per pair
- 75% extension
- 8mm slide thickness
- Low profile only 20mm high
- Not suitable for flat mounting
- Temperature -20°C to +110°C
- DZ - 12 hours salt spray test
- Sold in pairs
Notes:
- M3 screw/3mm woodscrew fixing recommendation
- Max head height 1.8mm/5.6mm diameter
- Horizontal mounting not recommended
- Load ratings quoted are the maximum for a pair of side mounted slides installed 450mm apart, unless otherwise stated
- Sold in pairs
Material - Mild Steel
Finish - Zinc Plate & Passivate

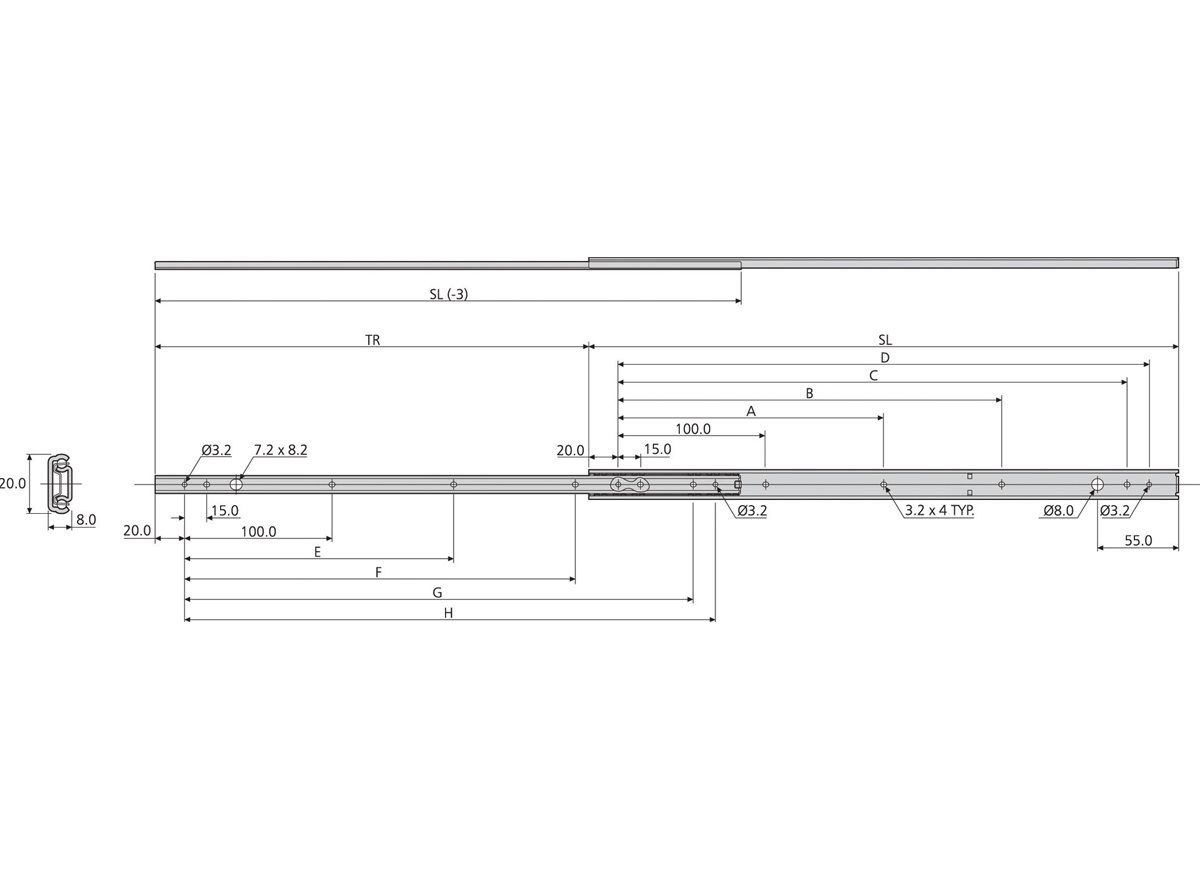

SL = Slide Length
TR = Travel
W = Weight of slide (kg) - per pair
L = Load capacity of slide (kg) - per pair
